PRODUCT DESCRIPTION

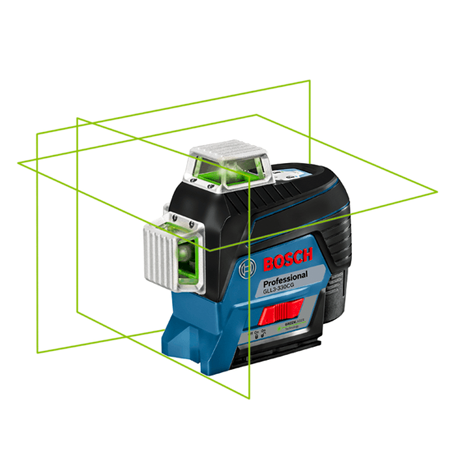

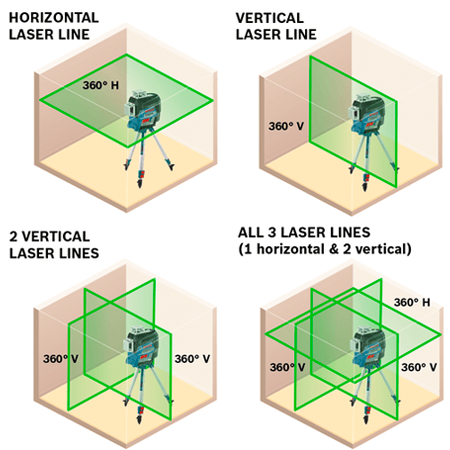

The Bosch GLL3-330CG 12V Max 360° Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser provides an all-in-one level and alignment solution for one-person job setup. The leveling laser generates three green-beam laser chalk lines in 360° laser planes – one horizontal and two vertical. With Bluetooth® connectivity, users can control the setup of the laser from across the room with their smart phone and the free Bosch Leveling Remote App. The laser offers dual power technology, employed the included Bosch 12 V Max Lithium-ion battery for extended runtime, or with four AA alkaline batteries. The laser has a working range of up to 200 Ft. diameter, and with pulse mode the range extends up to 330 Ft. (diameter) with the optional LR8 receiver. This laser features VisiMax™ Technology to drive maximum line visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty jobsite conditions.
| Height | 5.8" |
| IP Rating | IP 54 |
| Laser Beam Color | Green |
| Laser Diode | <10 mW @ 500 nm -540 nm, Class 2 |
| Length | 6.4" |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic Composite |
| Mount Threading | 1/4-20, 5/8-11 |
| Operating Temperature | 14° F / -10° C up to 104° F / 40° C |
| Range | Up to 200-ft. diameter |
| Weight | 2.0lb |
| Width | 3.3" |
| Works With |
Laser Receivers LR8 Tripods BT160, BT170HD, BT300HD, BT 150 Telescoping Pole System BP350 Telescoping Leveling Rods GR 16, GR500 Mounts and Positioning Devices WM 4, BM 1, BM3, LB10, RM 2 |
| Includes | (1) GLL3-330CG 12V Max 360⁰ Connected Green-Beam Three-Plane Leveling and Alignment-Line Laser, (1) 12V Max Lithium-Ion 2.0 Ah Battery, (1) 12V Max Lithium-Ion Battery Charger, (1) BM 1 Positioning Device, (1) Laser Target, (1) AA1 Alkaline Battery Adapter, (1) Heavy-Duty Pouch, (1) Hard Carrying Case |
