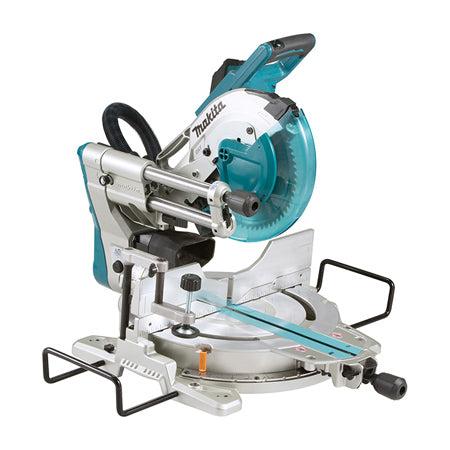

LS1019 - 10" Sliding Compound Mitre Saw

Up To 12" Cuts In 2x Material, 6-5/8" Nested Crown Moulding And 5-1/4" Vertical Baseboard

Incorporates Makita's Deep And eXact Cutting Technology (DXT)

• Rail forward design enables saw to be placed against wall to maximize effective workspace
• 3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
• 1-3/16" guide rail diameter provides increased stability and cutting precision
• Integrated guide fence and lower fence increases rigidity and support of materials
• Fence design allows fence to be secured to holders to prevent damage and/or loss
• Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
• Electronic speed control maintains constant speed under heavy load
• Soft start feature gradually increases speed to eliminate start up shock
• Bevel capacity of 48^o left or right with positive stops at 0^o, 22.5^o, 33.9^o, 45^o & 48^o
• Mitre capacity of 60^o left or right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o, 45^o & 60^o
• Large mitre table ideal for use with wide materials
• Easy to operate mitre angle lock with free spin releasing lever and locking lever
• Improved dust collection with dual dust collection ports
• Horizontal handle design with 2 stage safety switch for increased operator safety
• Ergonomic horizontal soft rubber grip design for vibration absorption and comfortable operation

SPECIFICATIONS

Blade Diameter: 10” (255 mm)

Arbor: 5/8” (15.88 mm)

No Load Speed: 3,200 RPM

AMPS (120V): 15.0 A

Vibration Level: 2.5 m/s2

Noise Level: 91 dB(A)

Dimensions (L x W x H): 31-3/4” x 25” x 26” (805 mm x 644 mm x 660 mm)

Net Weight: 57.6 lbs (26.1 kg)

INCLUDES: 10" C.T. Blade 60T (A-93675), Hex Wrench 6 (781044-6), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Dust Nozzle (123980-4), Two Holders (326978-2), Wrench Holder (416536-3)
