T3MAG - 1" T3 GAS CONCRETE TOOL

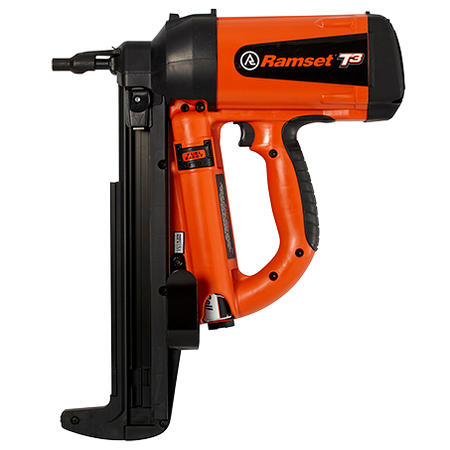

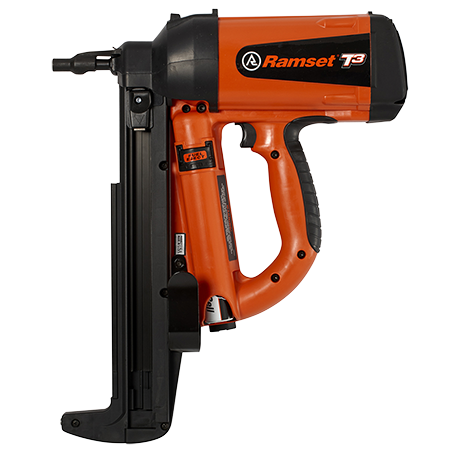

Ramset T3MAG Gas Fastening System
The Ramset T3MAG Gas Fastening System was built for commercial drywall and framing contractors who demand speed, consistency, and ergonomic performance on the jobsite. Featuring a redesigned nosepiece, patented pin-feed mechanism, and 45-pin magazine capacity, the T3MAG delivers fast, reliable fastening into concrete, structural steel, and hollow block with minimal jamming and reduced operator fatigue.
Designed with Ramset’s “Grip It & Flip It” balance system, the T3MAG provides superior handling and control while offering significantly quieter operation than traditional powder actuated tools.
More info at https://ramset.ca/product/t3-mag/
Features & Benefits
- 25% more power for improved fastening performance
- Higher stick rate with .125 diameter pins
- Patented pin-feed mechanism reduces jams
- Newly designed nosepiece for smoother operation
- 45-pin magazine capacity for increased productivity
- Deep leg track capability
- Lightweight ergonomic design minimizes fatigue
- Easy push-down force for faster fastening
- Significantly quieter than powder actuated tools
- Battery charger maintains constant charging even during voltage drops
- Fastens into:
- Concrete
- Structural steel
- Hollow concrete block (CMU)
- Up to 5x faster than powder actuated systems
- Up to 10x faster than light duty anchors
- No licensing required compared to powder actuated systems
Built for Commercial Contractors
The Ramset T3MAG was engineered specifically for:
- Commercial drywall contractors
- Steel stud framing crews
- Track fastening applications
- Interior build-outs
- Concrete and steel fastening applications
Its balanced ergonomic design allows the tool to be comfortably supported with minimal effort, helping reduce strain during repetitive fastening applications.
Performance Advantages
Market-Leading Stick Rate
The T3MAG utilizes a ¾" step shank pin design for exceptional fastening consistency, especially in:
- Hard concrete
- Aggregate-filled concrete
- Structural steel applications
Fast & Versatile
Capable of fastening into multiple substrates with one system:
- Concrete
- Structural steel
- Hollow block
Ideal for high-volume fastening applications where speed and reliability matter.
Technical Specifications
| Specification | Details |
|---|---|
| Model | T3MAG |
| Length | 18-1/2" |
| Height | 15" |
| Weight | 9.2 lbs |
| Pin Guide O.D. | .590 |
| Fuel Cell Capacity | Approx. 1000 shots |
| Battery Capacity | Approx. 3000 shots per charge |
Steel Performance Ratings
Installed in A36 Structural Steel
| Steel Thickness | Allowable / Ultimate Tension Load | Allowable / Ultimate Shear Load |
|---|---|---|
| 3/16" | 237 / 1184 lbs | 356 / 1782 lbs |
| 3/8" | 189 / 943 lbs | 392 / 1960 lbs |
- Tested in accordance with ICC AC70 & ASTM E1190 standards
- Designed for high-performance steel fastening applications
Concrete Performance Ratings
Stone Aggregate Concrete
| Penetration | Concrete Strength | Allowable / Ultimate Tension |
|---|---|---|
| 5/8" | 2000 PSI | 83 / 414 lbs |
| 3/4" | 2000 PSI | 107 / 541 lbs |
| 5/8" | 4000 PSI | 78 / 426 lbs |
| 3/4" | 4000 PSI | 104 / 593 lbs |
Lightweight Concrete & CMU
| Substrate | Allowable / Ultimate Tension |
|---|---|
| Lightweight Concrete | Up to 108 / 540 lbs |
| Hollow CMU | Up to 133 lbs allowable tension |
Certifications & Approvals
- ICC ESR-1955 Approved Fasteners
- COLA RR-22668 Approved Fasteners
