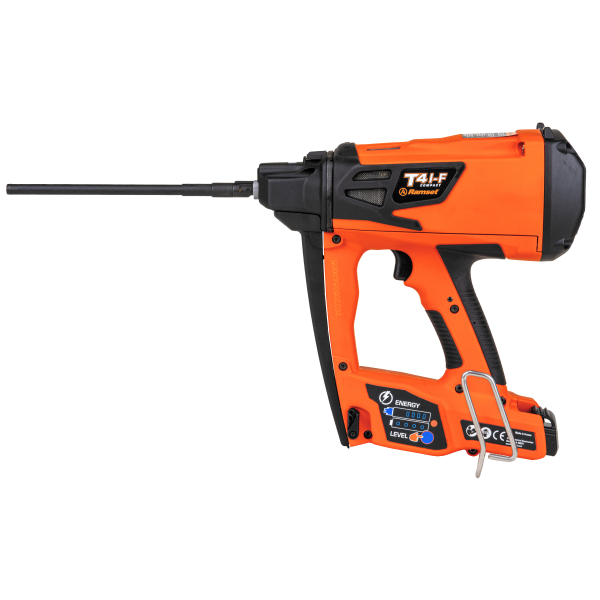

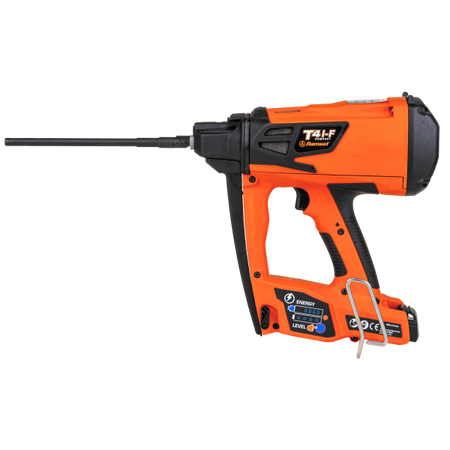

Ramset T4IFCT Compact Gas Insulation Fastening System – Kit

The Ramset T4IFCompacT is the latest evolution in the T4 insulation fastening lineup, delivering faster installs, increased power, and reduced operator fatigue for commercial insulation applications. Designed for fastening rigid insulation directly to concrete, hollow block, and steel studs, the T4IF system eliminates the need for adhesives and traditional stick pin systems.

With 19% more power, 7% less pushdown force, and a lightweight 7.3 lb design, the T4IF allows contractors to work faster and more efficiently in tight spaces and demanding jobsite conditions. The fully automatic gas fastening system is up to 4x faster than traditional insulation attachment methods while delivering a cleaner, more consistent finish.

More info at https://ramset.ca/product/t4if-compact/

Features & Benefits

• 19% more driving power than previous T4 models
• 7% less pushdown force for improved ergonomics
• Lightweight 7.3 lb design reduces user fatigue
• Fastens insulation directly to:
  • Concrete
  • Hollow concrete block (CMU)
  • Steel studs
• No adhesives or spindle insulation anchors required
• Up to 600 shots per fuel cell
• Lithium-ion battery delivers up to 10,000 shots per charge
• Operates in temperatures from -15°C to 49°C
• Compact design allows fastening in tight spaces around pipes and sprinkler systems
• Adjustable depth of drive
• Fuel and battery level gauges built in
• Supports insulation thicknesses from 1"–8"
• Thermal bridging efficiency rated at over 99%
• Made for year-round use, even in cold or wet conditions

Applications

Ideal for fastening:

• Rockwool insulation
• Expanded Polystyrene (EPS)
• Extruded Polystyrene (XPS)

Compatible substrates:

• Solid concrete
• Hollow concrete block
• Steel studs

Perfect for:

• Commercial insulation installation
• Building envelope systems
• Mechanical room insulation
• Exterior wall insulation systems

Technical Specifications

Fastener Specifications

• Pin Material: Heat-treated carbon steel
• Pin Finish: Mechanical zinc plated
• Washer Material: High-density polyethylene (HDPE)
• Holding Diameter: 2-3/8" (60 mm)
• Made in Canada
• Clearly branded with Ramset logo and fastener length

Performance Highlights

Steel Stud Pullout Loads

Concrete Pullout Loads

Hollow Concrete Block

Thermal Performance Advantage

The Ramset T4IF system minimizes thermal bridging compared to traditional stick pin systems. Independent testing from the University of Toronto ATOMS Laboratory demonstrated thermal efficiency ratings exceeding 99%, helping improve building envelope performance and reduce energy loss.

Benefits include:

• Reduced heating and cooling costs
• Lower condensation risk
• Reduced potential for mold and corrosion issues
• Improved overall insulation efficiency

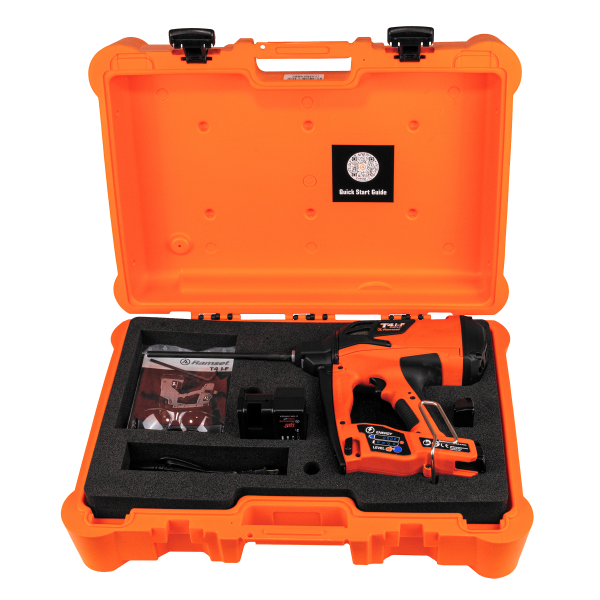

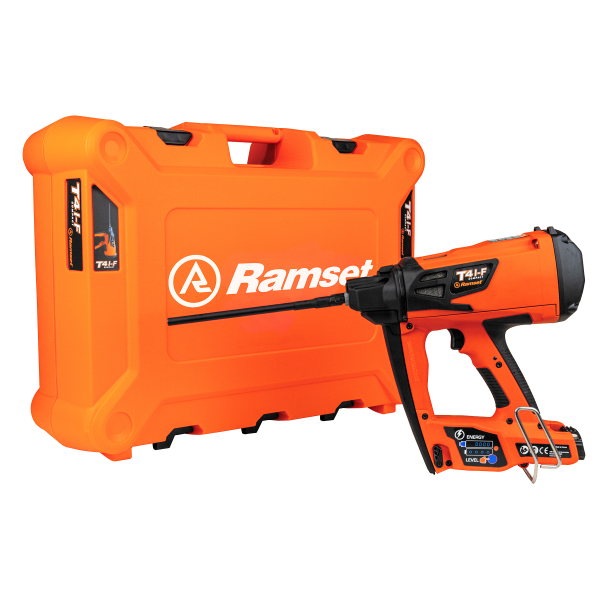

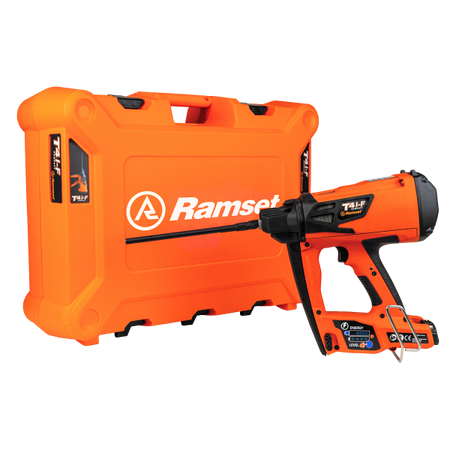

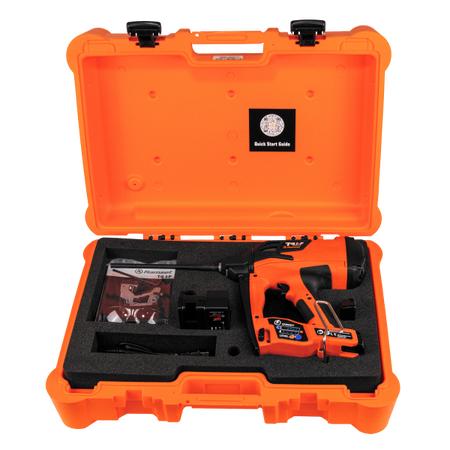

Includes

• T4IF Compact Gas Tool
• Lithium-Ion Battery
• Battery Charger
• Safety Glasses
• Operating Manual

Compatible Fasteners

For Steel Studs

Compatible with:

• T4IFS-100 through T4IFS-800 fasteners

For Concrete & CMU

Compatible with:

• T4IFC-100 through T4IFC-700 fasteners

Available for insulation thicknesses from 1" to 8".
