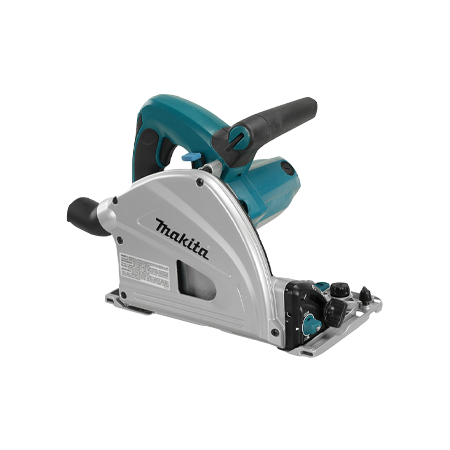

Unique Plunge Action For Specialized Cuts
Cutting Capacity of 2-3/16" (56 mm)
- Depth stopper enables splinter-free cutting
- Precision bevel cut feature maintains exact blade position for quick and easy bevel cutting without compensating adjustments
- Soft start feature gradually increases speed to eliminate start up shock
- Depth stopper enables splinter-free cutting
- Precision bevel cut feature maintains exact blade position for quick and easy bevel cutting without compensating adjustments
- Soft start feature gradually increases speed to eliminate start up shock
- Constant speed control maintains constant speed under heavy load
- Overload protection prevents motor burnout due to current overload
- Variable speed dial adjusts cutting speed based on materials or application
- Lightweight design with magnesium blade case, gear housing and base
- Close to wall cut of just 11/16"
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
- Optional guide rails available for precise cutting applications (55", 75" or 118")
Items Included: 6-1/2" C.T. Blade 48T (A-99932), Hex Wrench 5 (783203-8), Front Cuff 24 (195546-0)
Shipping Dimensions (Length x Width x Height) & Weight : 10.83 In. X 15.63 In. X 10.98 In. Weight : 12.79 Lb.
Specifications
| Blade Diameter | 6-1/2" (165 mm) |
| Arbor | 13/16" (20 mm) |
| Maximum Cutting Capacity: | |
| 0° | 2-3/16" (56 mm) |
| 45° | 1-9/16" (39 mm) |
| 48° | 1-1/2" (38 mm) |
| No Load Speed | 2,200 - 6,400 RPM |
| AMPS (120 V) | 12.0 A |
| Vibration Level | 2.5 m/s2 |
| Noise Level | 81 dB(A) |
| Overall Length | 13-3/8" (341 mm) |
| Net Weight | 9.7 lbs (4.4 kg) |
