Stabila

05700TR - LAR 350 Dual Slope Rotary Laser

SKU: 05700TR
$2,499.00 CAD

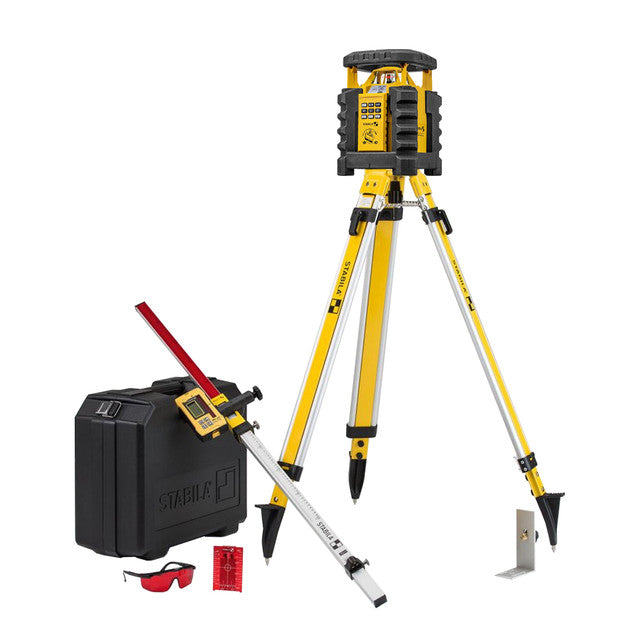

STABILA LAR 350 Dual Slope Rotary Laser – 9 Piece Kit

Includes (9-Piece Kit)

  • LAR 350 Rotary Laser

  • REC 300 Digital Receiver

  • RC-LAR350 Remote Control

  • Heavy-Duty Tripod

  • Elevation Rod

  • 90° Angle Mount

  • Laser Goggles

  • Target Plate

  • Carrying Case

  • 2 × D 1.5V Batteries

  • 4 × AA 1.5V Batteries


The STABILA LAR 350 Rotary Laser is a rugged, high-performance laser designed for demanding construction and layout applications. Built for accuracy and durability, it provides horizontal, vertical, and dual-slope alignment for a wide range of building tasks. With a working range of up to 2600 ft diameter, advanced remote control features, and STABILA’s PROTECTOR system, this laser is built to perform reliably in tough jobsite conditions.
UPC: 089634057000

Key Features

  • Dual Slope Capability – Set controlled slopes up to 5° on two axes for grading, drainage, and excavation work.

  • Large Working Range – Up to 2600 ft diameter when used with the REC 300 Digital Receiver.

  • High Accuracy – Precision leveling of ±1/8" at 100 ft.

  • Fully Automatic Self-Leveling – Self-levels within ±5° for fast and accurate setup.

  • MOTION CONTROL System – Easy operation using the RC-LAR350 remote control.

  • Masking Mode – Limit the rotating beam to a specific area for safer jobsite use.

  • LED ASSIST System – LEDs provide clear visual indicators for operation and axis adjustments.

  • Extreme Durability – STABILA PROTECTOR System protects the laser even if dropped from up to 6 ft.

  • Jobsite Ready – IP65 rated for dustproof and waterproof protection.

Specifications

  • Laser Class: 2

  • Laser Output: < 1 mW

  • Laser Wavelength: 635 nm

  • Self-Leveling Range: ±5°

  • Leveling Accuracy: ±1/8" at 100 ft

  • Working Diameter: Up to 2600 ft

  • Operating Time: Up to 80 hours

  • Protection Rating: IP65

  • Tripod Thread: 5/8"-11

Applications

  • Concrete work, patios, and driveways

  • Masonry and bricklaying layout

  • Framing and structural layout

  • Excavation and drainage grading

  • Landscaping and retaining walls

  • Civil engineering and pipeline installation
