Milwaukee

2788-22HD - M18 FUEL 1-1/2" Lineman Magnetic Drill High Demand Kit

SKU: 2788-22HD
$3,199.99 CAD
-16% $3,799.99 CAD $3,199.99 CAD

Milwaukee 2788-22HD M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit

The Milwaukee M18 FUEL™ 1-1/2" Lineman Magnetic Drill High Demand™ Kit (2788-22HD) delivers the power and performance of a corded magnetic drill with the freedom of the M18™ cordless platform. Designed specifically for demanding drilling applications, it features a POWERSTATE™ Brushless Motor, a self-powered permanent magnet base, and a 1-1/2" annular cutter capacity.

The magnetic base provides up to 2,000 lbs. of holding force and operates independently of the tool's power source, helping maintain a secure hold even if the battery becomes depleted. Auto-Stop lift-off detection automatically shuts off motor power if excessive rotational movement is detected, providing added protection during drilling.

Powered by an M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery, the kit delivers the runtime and performance needed for heavy-duty applications. The battery provides up to 50% more power and runs up to 50% cooler than standard XC battery packs.

Key Features

  • POWERSTATE™ Brushless Motor delivers maximum power and up to 2X longer motor life

  • REDLINK PLUS™ Intelligence provides optimized performance and overload protection

  • Self-powered permanent magnet base operates independently of the battery and provides up to 2,000 lbs. of holding force

  • 1-1/2" annular cutter capacity for heavy-duty drilling applications

  • 1/2" twist bit capacity

  • Two-speed gearbox with 400 and 690 RPM settings

  • Auto-Stop lift-off detection helps protect the operator during unexpected movement

  • Drills up to 66 holes using a 13/16" cutter per charge

  • Includes M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery

  • Fully compatible with 200+ M18™ tools

  • 5-year limited tool warranty

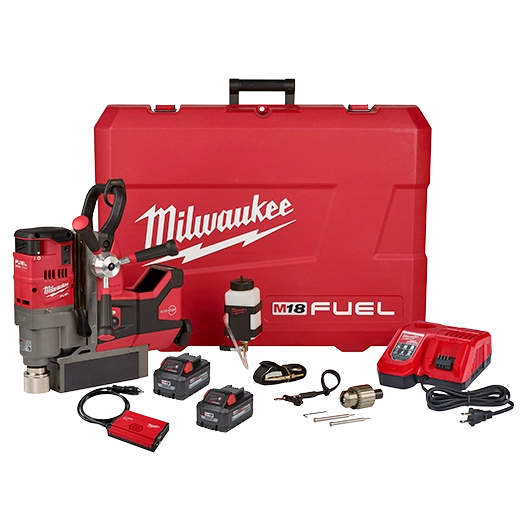

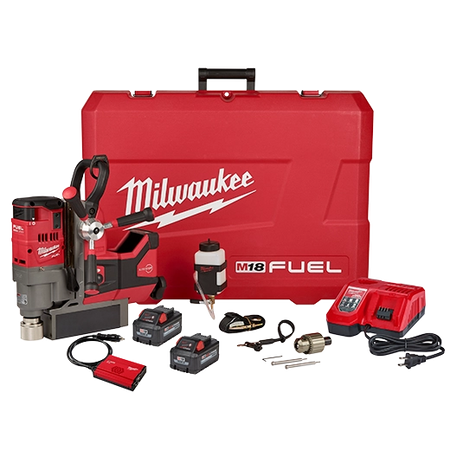

What's Included

  • (1) M18 FUEL™ 1-1/2" Lineman Magnetic Drill — 2788-20

  • (2) M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Batteries — 48-11-1880

  • (1) Safety Strap

  • (1) Magnetic Lubrication Tank

  • (1) Chuck Key

  • (1) Carrying Case

  • (1) AC/DC Vehicle Charger

  • (1) 3/4" Weldon to 1/2" Chuck Adapter

  • (2) 1" Retractable Pilot Pins

Specifications

Specification Details
Battery System M18™
Voltage 18V
Motor Type POWERSTATE™ Brushless
Chuck Type All Metal
Chuck Size 1-1/2"
Annular Cutter Capacity 1-1/2"
Twist Bit Capacity 1/2"
RPM 400 / 690
Maximum RPM 690
Stroke Length 5-3/4"
Motor Head Adjustment 5-1/8"
Power Source Cordless
Hammer Function No
Length 13.8"
Height 15.5"
Width 7.5"
Weight 30.9 lbs
Tool Warranty 5-Year Limited Warranty

Built for Heavy-Duty Drilling

With its cordless M18™ platform, high-output batteries, powerful brushless motor, and independently powered magnetic base, the 2788-22HD is built for professionals who need reliable magnetic drilling performance without being tied to an electrical outlet.
