DCF414B – 20V XR 1/4" Rivet Tool (Tool Only)

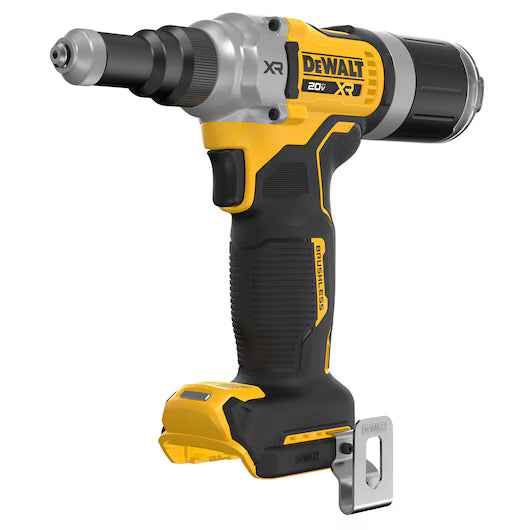

DEWALT DCF414B – 20V MAX XR® Brushless Cordless 1/4" Rivet Tool (Tool Only)*

The DEWALT DCF414 Rivet Tool delivers powerful, cordless riveting for demanding jobsite applications. With a brushless motor producing up to 4,500 lbf of pulling force, it easily installs aluminum, steel, and stainless steel blind rivets—making it ideal for HVAC, metal fabrication, and construction work.

Key Features

• High Pulling Force – Up to 4,500 lbf for fastening tough rivets, including stainless steel.
• High Productivity – Install up to 300 rivets per charge (battery sold separately).
• Multi-Size Compatibility – Works with 3/16", 15/64", and 1/4" rivets.
• Brushless Motor – Provides consistent power, longer runtime, and extended tool life.
• Tool-Free Nose Changes – Quickly switch between rivet sizes without tools.
• On-Board Storage – Keeps nose pieces organized and within reach.
• Mandrel Collector – Captures spent mandrels for cleaner, safer operation.
• Single-Stroke Installation – 1.18" stroke length installs rivets in one pull.
• Built-In LED Light – Improves visibility in low-light work areas.

Specifications

• Pulling Force: 4,500 lbf
• Stroke Length: 1.18"
• Length: 10.5"
• Height: 8.6"
• Weight: 3.6 lbs
• Motor Type: Brushless
• Battery Platform: 20V MAX*

Includes

• (1) DCF414 Rivet Tool
• (1) 3/16" Nose Piece
• (1) 15/64" Nose Piece
• (1) 1/4" Nose Piece
• (1) Replacement Jaw Set
• (1) Belt Hook

Ideal For

• HVAC installation
• Sheet metal work
• Automotive and fabrication
• Construction and maintenance

Battery and charger sold separately.
