The Bosch-exclusive Axial-Glide offers wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. The Bosch miter saw's 15 Amp motor delivers no-load speeds of 3,800 RPM for quick, accurate cuts in many materials. For added convenience and versatility, the saw is compatible with a variety of 12 In. blades and it has a clear lower guard to provide unobstructed cut-line visibility. The GCM12SD provides easy adjustments with upfront bevel and miter controls and detents at common angles. The saw's all-metal bevel lock lever and range selector are located up front to make bevel adjustments easy.
| Amperage | 15.0 |
| Bevel Angle Range | 47° left and 47° right |
| Bevel Stops | 0°, 33.9°, 45° and 47° (L/R) |
| Blade Diameter (in) | 12.0 |
| Blade Size | 12" |
| Case Type | - |
| Category | Compound Miter Saws |
| Dust Collection | Yes |
| Electric Motor Brake | Yes |
| Height | 27.0" |
| Height of Table from Base Feet to Table Surface - In. | 3.75 |
| Length | 32.375" |
| Max. Base Molding Against Fence | 3-7/8 In. (6-3/4 In. from 0° to 47 L) |
| Max. Crown Molding (38° Spring) Angled Against Fence | 5-1/4 In. (5-1/2 In. from 0° to 47° L) |
| Max. Crown Molding (45° Spring) Angled Against Fence | 6 In. |
| Max. Cut Capacity - 0° Miter 0° Bevel | 3-1/2 In. x 13-1/2 In. (4x14 Dimensional Lumber) |
| Max. Cut Capacity - 0° Miter 45° Left Bevel | 2 In. x 13-1/2 In. (2x14 Dimensional Lumber) |
| Max. Cut Capacity - 0° Miter 45° Right Bevel | 1-1/2 In. x 13-1/2 In. (2x14 Dimensional Lumber) |
| Max. Cut Capacity - 45° Miter 0° Bevel | 3-1/2 In. x 9-1/2 In. (4x10 Dimensional Lumber) |
| Max. Cut Capacity - 45° Miter 45° Left Bevel | 2 In. x 9-1/2 In. (2x10 Dimensional Lumber) |
| Max. Cut Capacity - 45° Miter 45° Right Bevel | 1-1/2 In. x 9-1/2 In. (2x10 Dimensional Lumber) |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right) |
| Miter Positive Stops | 0°, 15°, 22.5,° 31.6°, 45° (Left/Right), 60° (Right) |
| No Load RPM | 3,800 |
| Separate On/Off Speed Control | Blank |
| Voltage | 120V |
| Weight | 65.0lb |
| Width | 26.5" |
| Works With |
Miter Saw Stands T1B, T4B, GTA3800 Crown Molding Stops (Pair) MS1233 Length Stop MS1234 Anti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses Other Vacuum Hoses VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses VAC024. (The VAC002 adapter is not compatible with the GCM12SD.) |

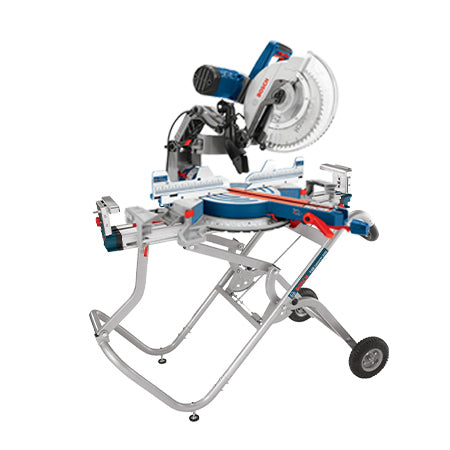

| Includes | (1) GCM12SD 12 In. Dual-Bevel Glide Miter Saw, (1) Premium 12 In. 60-Tooth Carbide-Tipped Blade, (1) Wrench, (1) Toolless Vertical Work Clamp, (1) Dust Bag/Assembly, (1) Vacuum Adapter Elbow, (1) T4B Gravity-Rise Miter Saw Stand with Wheels |
