- Best-in-class power, designed to consistently drive through engineered lumber
- Single strip, allows for increased maneuverability in tight spaces
- Innovative nosepiece design
- Dry fire lockout
- Rugged, rotatable belt hook
- Overmold grip increases control of the tool

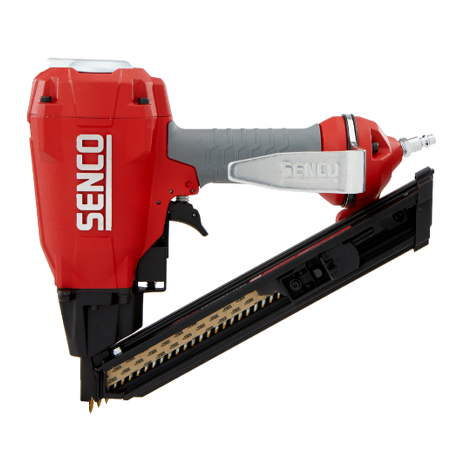

The JN91H1 is specifically designed for fastening pre-punched metal connection hardware to dense engineered lumber, like LVL. This small, compact metal connector nailer fits easily between rafters and joists, driving 1-1/2” nails through joist hangers, seismic and hurricane ties, and rafter straps. The innovative nosepiece design leads with the point of the nail, ensuring precise placement on each drive.
SPECIFICATIONS
- Item #: JN91H1
- Tool Weight: 5.48 lbs (2.48 kgs)
- Height: 12.5" (317 mm)
- Length: 11.13" (282 mm)
- Width: 4.38" (111 mm)
- Warranty: 5 years
- Technology: PNEUMATIC
- Trigger Type: Sequential Actuation
- Capacity: 30
- Power Type: Pneumatic
- Operating Pressure: 70-120 (PSI)
- Operating Pressure: 4.8-8.3 (Bar)
- Air Consumption: 4.4 (SCFM)
- Air Inlet NPT: 1/4"
