Item # 9X0001N

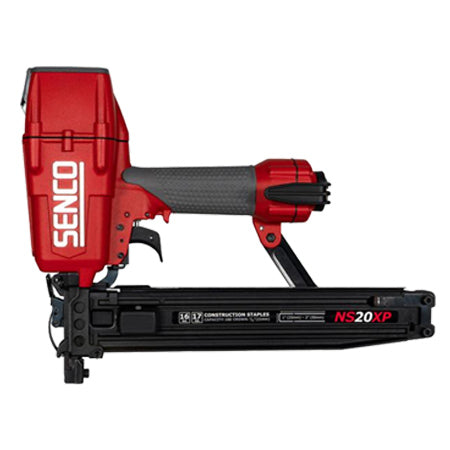

Setting the new standard for class-leading power and tool durability, the NS20XP is the industry benchmark for construction staplers. The new drive track design allows for superior control of the fastener, providing unrivaled drivability. The NS20XP drives both 16 and 17 gauge, 7/16" crown staples (1" to 2" in length).
Applications
Sheathing, Furniture Framing, Crate & Box Assembly, Subflooring, Pallets, Roof Decking, Subflooring, Fascia, Cedar Shingles
Features
- Enhanced EZ-Clear latch allows for quick access to clear fasteners.
- New drive track design eliminates movement of the staple, enhancing overall drive performance and virtually eliminating fastener jams, skipping and misfires.
- Well-balanced, ergonomic design for all-day use.
Specifications
- Item #: 9X0001N
- Tool Weight: 5.1 lbs (2.3 kgs)
- Height: 11" (279 mm)
- Length: 15" (381 mm)
- Width: 3 1/2" (89 mm)
- Warranty: 5 year
- Technology: Pneumatic
- Trigger Type: Contact Actuation
- Operating Pressure: 70 - 120 (PSI)
- Operating Pressure: 4.8 - 8.3 (Bar)
- Air Consumption: 3.5 (SCFM)
- Air Inlet NPT: 3/8"
- Capacity: 160
- Crown: 7/16
- Power Type: Pneumatic
- Range: 1" - 2"
