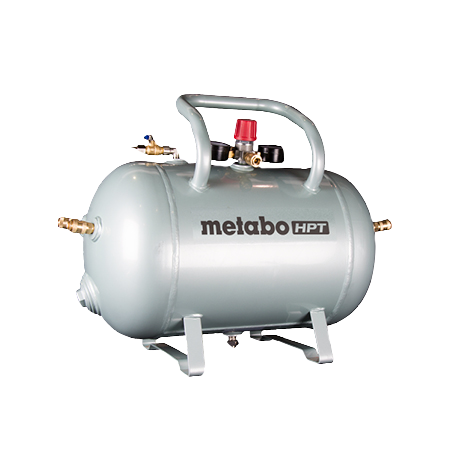

The 10 Gallon Reserve Air Tank (UA3810AB) is the perfect addition to the jobsite to ensure the air pressure being supplied to all nailers is sufficient, and that the required PSI remains constant - even if the compressor is 200 or more feet away.
Simply add this reserve air tank between the compressor and nailers and there will be enough pressure to power five or more nailers operating at the same time. In the event that a nailer requires less PSI than other nailers attached, the UA3810AB has that situation covered with its standard factory installed large knob regulator.
Specifications
Tank Type | Horizontal Barrel |
Tank Capacity | 10-Gallon (ASME) |
No. of Outputs | Five (4 Unregulated + 1 Regulated) |
Tank Pressure Gauge | Yes - Installed |
Regulated Pressure Gauge | Yes - Installed |
Coupling Sockets | 1/4" Industrial x 5 |
Max Allowed Working Pressure | 175 PSI |
Input Shut-Off Valve | Yes - Installed |
Safety Release Valve | Yes - Installed |
Weight | 40 lbs |
Warranty | 1-Year |
Included
- (4) 1/4" Quick Connect Couplers with 3/8" NPT (889021)
- (1) 1/4" Quick Connect Coupler [located on Regulator] with 1/4" NPT (888020)
- (1) Safety Relief Valve (889014)
- (1) Industrial Tank Pressure Gauge (889015)
- (1) Industrial Regulated Pressure Gauge (889016)
- (1) Industrial Ball (Shut-Off) Valve on Input (889019)
- (1) 1/4" Industrial Plug (889018)
